Industrial Concrete Crack Repair & Joint Sealing in Kuala Lumpur

Why a Floor Coating Project Is Really a Substrate Project

In every competitive tender across the Klang Valley, somebody tries to save money by trimming the repair line item. It is the single most expensive decision a facility owner can make. The highest-grade epoxy or urethane system in the world will peel, blister, or delaminate within a year if it is applied over cracked, spalled, oil-contaminated, or improperly prepared concrete. Our field experience in Kuala Lumpur warehouses and manufacturing plants keeps proving the same point: the coating is the last 20% of the job; the concrete repair is the first 80%.

Epoxy Ninja Malaysia treats substrate repair as a standalone craft, not a punch-list afterthought. Our foreman Amirul bin Rahmat has spent seven years building this capability inside the company, and he personally leads every major assessment before our estimating team releases a quote. When the repair scope is right, the coating above it lasts for years. When it is wrong, the floor is already failing before the first bucket of epoxy is opened.

The KL Moisture Vapor Problem Nobody Wants to Talk About

Concrete repair textbooks written for cooler climates frequently underplay moisture vapor as a failure mechanism. In Kuala Lumpur, it is the dominant one. Slabs on grade across Cheras, Kajang, Sungai Buloh, and the Federal Highway corridor sit over saturated subsoils that push water vapor upward 24 hours a day, with monsoon rains from November to February driving hydrostatic pressure even higher.

We perform ASTM F2170 in-situ relative humidity testing and ASTM F1869 calcium chloride testing on every KL repair project before any coating specification is finalized. When readings exceed the threshold for standard coatings, we specify one of three responses:

• Moisture-tolerant epoxy primers for slabs with mild vapor pressure.
• Vapor barrier primer systems that physically block vapor transmission under mid-range emission rates.
• Cementitious vapor barrier membranes for severe cases with active hydrostatic pressure, common in older ground-floor units near the Klang River.

Ignoring this step is the fastest way to turn an otherwise solid repair into a callback for a failed coating or a chemically damaged substrate six months later.

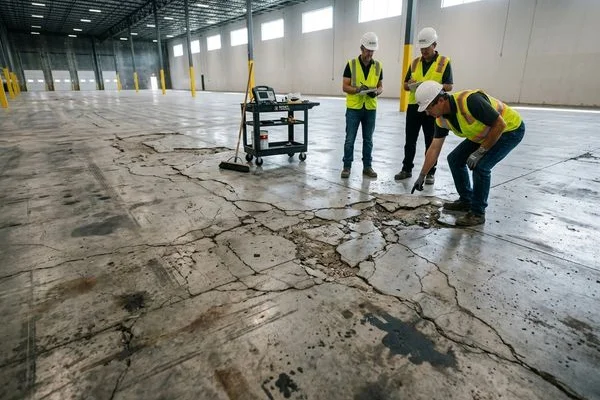

Classifying Cracks Before Choosing a Product

The mistake we see most often on legacy KL floors is a single repair approach applied to every crack. That works for about six months. After that, the rigid epoxy used in an active crack cracks again at the repair boundary, and the coating follows it into failure. Our process starts with classification, not product selection.

Dormant Structural Cracks

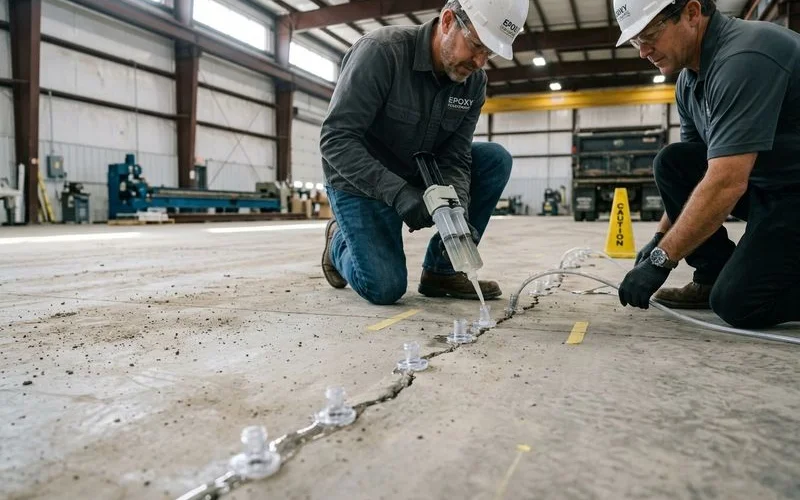

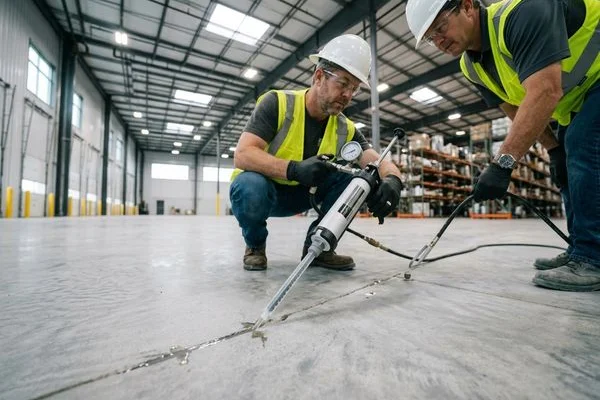

Dormant structural cracks are the result of past events: overloading, inadequate reinforcement, poor base preparation, or excessive drying shrinkage during the original pour. They are no longer moving. The correct fix is low-viscosity epoxy injection under pressure through ports drilled at intervals determined by crack depth. Done properly, the two faces of the crack are effectively welded back together and the slab regains tensile continuity. We then verify bond with post-injection pull tests before any polished concrete or coating system is applied.

Active Cracks

Active cracks are still moving, usually because of thermal cycling in uninsulated warehouses, differential settlement between slab pours, or dynamic loading from forklift traffic. These cracks must be treated with semi-rigid polyurea installed over the correct backer rod at a precise depth-to-width ratio, typically 1:1. Polyurea flexes with the slab while keeping the joint sealed, so the coating above can bridge without tearing.

Control Joints: Where Most KL Coating Failures Live

Walk any older industrial floor in Shah Alam or Petaling Jaya and the coating failures cluster along the control joints. Those joints are engineered to crack in a controlled line, which means they absorb more movement than any other part of the slab. Any filler material installed in them has to accommodate that movement, or it tears the coating every time the slab breathes.

Complete Mastic Removal, Every Time

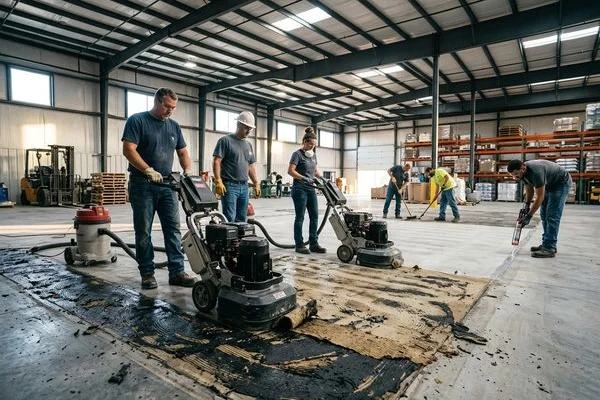

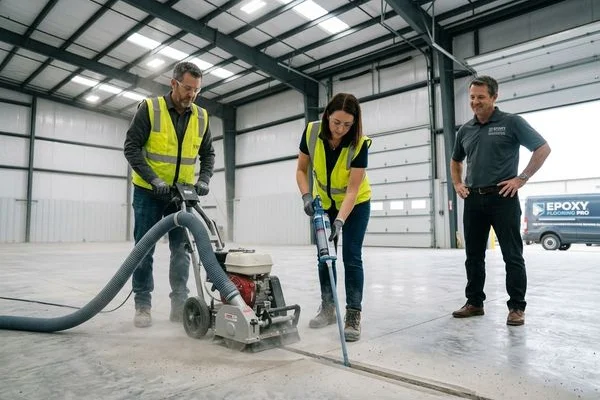

Legacy mastic in KL warehouses turns brittle, shrinks, and peels away from the joint walls as its plasticizers migrate out in the heat. When new filler is installed over old mastic, it bonds to the old mastic rather than to the concrete, so the entire repair fails as soon as the old layer lets go. Our process: complete removal using routers with diamond blades, followed by vacuuming and compressed-air blow-out before any new filler goes in.

Backer Rod and Correct Aspect Ratio

Closed-cell foam backer rod is not optional. It controls the filler depth-to-width ratio, prevents three-sided adhesion (which causes premature failure), and gives the filler a backing surface to stretch against as the joint opens. David Lee trains every new crew member on correct backer rod sizing before they touch a live joint, because backer rod errors explain most of the failed joints we inherit from other contractors.

Spall Repair as Precision Work, Not Patching

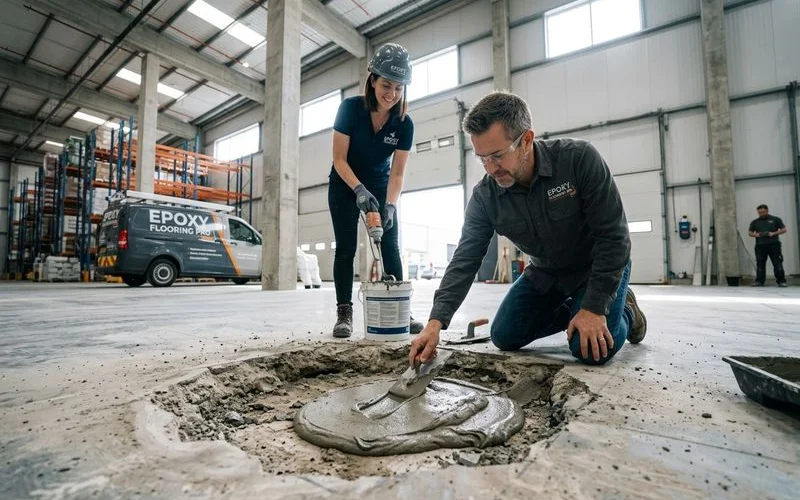

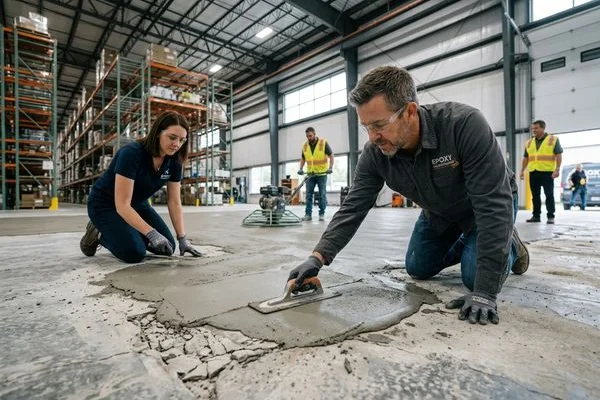

Surface spalls are not simply holes to be filled. A correct spall repair must match the surrounding surface profile so it does not telegraph through the coating, achieve compressive strength equal to or greater than the parent concrete, bond firmly to the substrate without stress concentrations, and resist shrinkage cracking during cure. We pick repair mortars deliberately: rapid-set cementitious mortars for small cosmetic spalls in dry areas, high-strength epoxy mortars for high-load zones or projects that need a fast return to service, and micro-topping systems when the surface damage is widespread.

Our Service Area and How to Get an Assessment

Epoxy Ninja Malaysia performs concrete and joint repair across Kuala Lumpur and the broader Klang Valley, including Petaling Jaya, Shah Alam, Subang Jaya, Puchong, Cheras, and Kajang. Call our team at 012-3751234 to schedule a substrate assessment. You will receive an itemized repair scope, a full set of substrate readings, and a coating specification engineered for your floor’s actual condition, not a generic template that looks good on paper and fails in the field.
