Secondary Containment Linings & Tank Coatings in Kuala Lumpur

The Last Line of Defence Against a Chemical Release

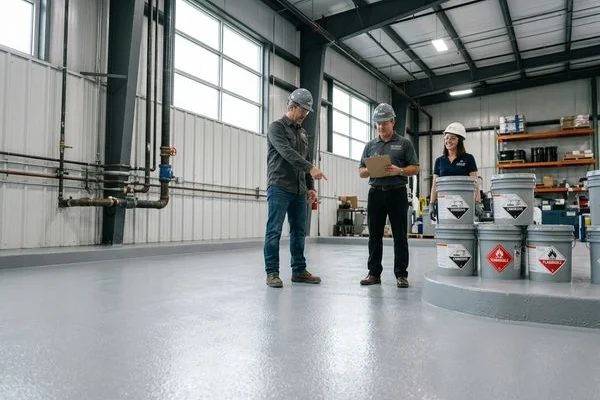

Secondary containment exists because primary containment, your tanks, pipes, drums, and vessels, can and does fail. Overfills, equipment failures, seismic events, and plain operational errors release thousands of litres of hazardous chemicals into secondary containment every year across the Klang Valley. When those linings perform, the chemical is captured, cleaned up, and the incident becomes a logged event. When they fail, the chemical reaches the soil, the storm drains, and eventually the Klang or Selangor rivers, triggering DOE enforcement, remediation bills, and reputational damage that lingers for years.

Malaysian DOSH and DOE expectations, reinforced by international SPCC-style practice, require that containment systems be impermeable and capable of holding the volume of the largest tank they protect. Meeting that standard takes more than pouring a concrete berm. It requires a protective lining system that maintains chemical impermeability for the full service life of the storage system. Epoxy Ninja Malaysia was founded in 2017 specifically to bring this standard of workmanship to Kuala Lumpur and the wider Klang Valley industrial base.

Matching Resin Chemistry to the Chemicals in the Berm

The choice of coating chemistry for a containment application is not a matter of preference, it is a technical decision driven by the specific chemicals the berm or tank will see. Using the wrong chemistry guarantees eventual failure, and our founder Michael Tan spent years watching KL clients pay twice because that decision was made on price alone.

Standard Bisphenol-A Epoxy

The foundation of industrial coating technology, BPA epoxy provides good resistance to dilute acids, alkalis, water, and many salts. It is appropriate for containment of aqueous solutions, dilute chemical spills, and petroleum products at low temperatures. Standard epoxy coating is not adequate for concentrated aromatic solvents, strong acids, oxidising chemicals, or applications requiring elevated service temperatures.

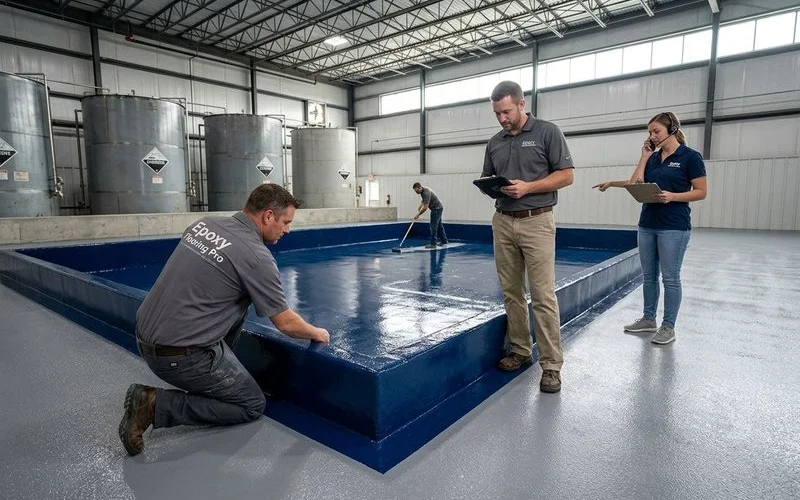

Novolac Epoxy

Novolac epoxy, also called epoxy novolac or phenol-formaldehyde novolac, is a specialty chemistry with a higher cross-link density than standard BPA epoxy. The additional cross-linking provides:

• Resistance to aromatic solvents including toluene, xylene, MEK, and acetone
• Resistance to concentrated sulfuric acid (up to 70%), hydrochloric acid, and many organic acids
• Improved resistance to elevated temperatures (continuous service to 150°C+)
• Higher solvent resistance for chemical process environments

For chemical storage facilities, solvent storage areas, plating bays, and battery rooms across Shah Alam and Bukit Raja, novolac epoxy is the minimum appropriate chemistry.

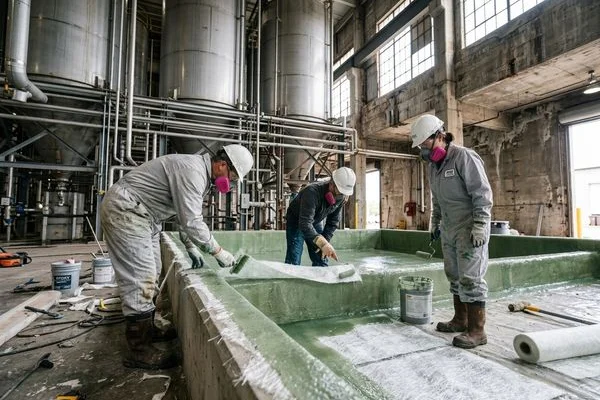

Vinyl Ester Linings

Vinyl ester systems represent the highest commonly applied tier in containment coating. Based on vinyl ester resin chemistry rather than epoxy, these systems resist:

• Fuming sulfuric acid and fuming nitric acid
• Strong oxidisers including concentrated hydrogen peroxide
• Bleach and sodium hypochlorite at concentrated levels
• Mixed chemical exposure with unknown or variable compositions
• Elevated-temperature chemical immersion service

Vinyl ester linings require more complex application procedures and more stringent surface preparation than epoxy systems, but they are the only specification that holds up in the most demanding Klang Valley process environments.

Where Containment Linings Actually Fail

Understanding where linings fail is the only way to design systems that do not repeat those failures. On the dozens of failed containment linings our team has inspected across the Klang Valley, failures cluster at predictable locations.

Construction Joints and Cracks

Concrete is not a monolithic material. It shrinks, moves, and develops cracks throughout its service life. Construction joints between the berm floor and walls, control joints in large containment slabs, and structural cracks all create stress concentrations in the coating system above. When the concrete moves, the lining is forced to stretch or delaminate at these points.

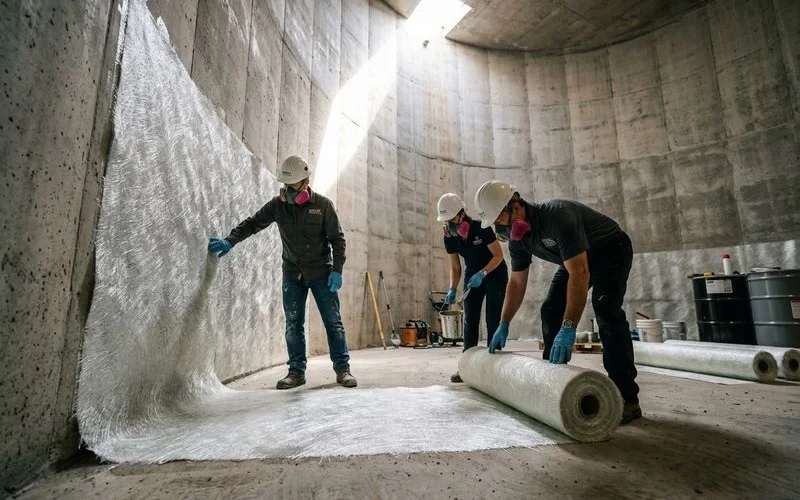

Our approach is strict: every joint and crack receives specific repair treatment, followed by fibreglass woven mat embedded in the first coat. The mat gives crack-bridging capacity, so small movements do not create pinholes. Mat reinforcement is applied at all joint locations as a standard practice, not an optional upsell.

Floor-to-Wall Transitions

The cove at the junction of the containment floor and the berm wall is a high-stress detail that is routinely applied incorrectly on legacy KL jobs. A coating that bridges the corner without a formed cove spans a stress concentration point and cracks at the profile under thermal cycling. We form proper radius coves in every floor-to-wall transition and embed fibreglass mat in the cove to lock in structural integrity.

Penetrations

Pipes, conduits, and structural elements penetrating a containment structure are every environmental manager’s greatest worry. Each penetration is a potential bypass path for chemical to slip past the lining entirely. We install appropriate penetration collars, boot flashings, or mechanical seals depending on the penetration type and the chemical exposure. All penetrations are spark-tested with particular attention, because they are the highest-risk holiday locations on any job.

Below-Grade Waterproofing for KL Groundwater

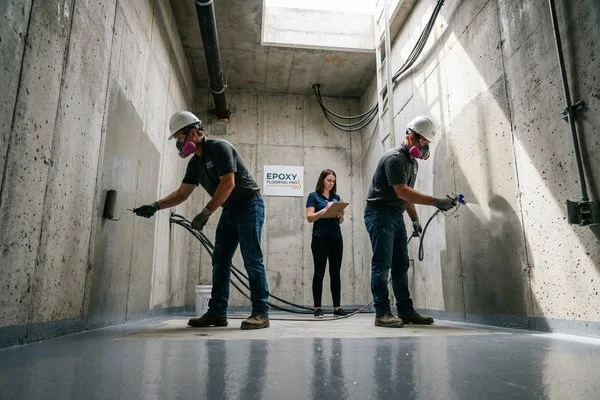

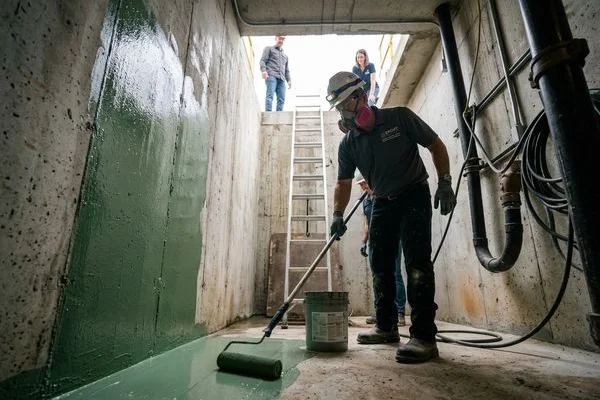

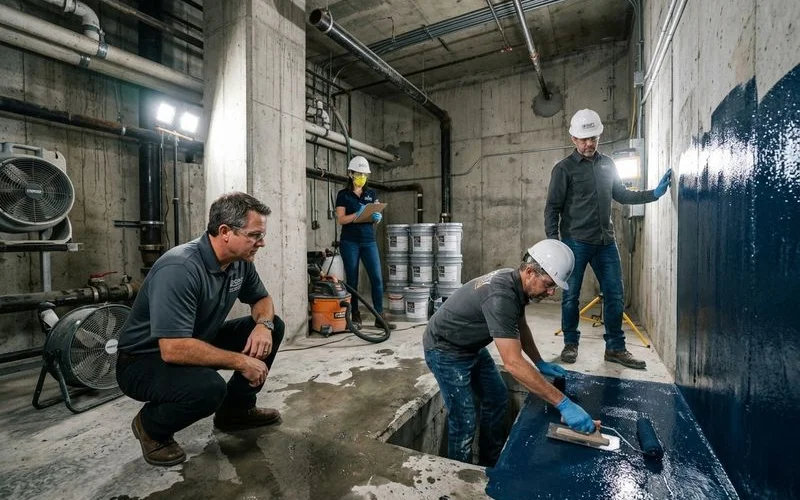

Not every containment challenge is about chemicals. Underground vaults, sumps, pump pits, and utility structures in KL sit under a water table that pushes vapor and hydrostatic pressure 24 hours a day. During the November to February monsoon, that pressure climbs sharply. We install waterproofing systems that address this separate challenge.

Negative-Side Crystalline Waterproofing is our first move on structures with active groundwater infiltration. Crystalline materials applied to the interior react with water and cement to form insoluble crystals within the concrete pores, progressively sealing the substrate from within.

Positive-Side Membrane Systems are installed on new construction or dry substrate conditions where the exterior face of the structure is still accessible. These membranes prevent moisture from entering the concrete in the first place.

Interior Coating Waterproofing uses high-build epoxy or polyurethane systems applied to the interior of below-grade structures. The system provides a physical barrier to moisture transmission while also delivering the chemical resistance appropriate for structures containing process fluids.

Documentation That Holds Up in a DOSH Audit

Malaysian DOSH safety audits and DOE environmental inspections routinely ask for written evidence that containment coatings were installed to a recognised standard. For regulated facilities around Klang, Kuantan, and Pasir Gudang, our containment projects include documentation structured specifically for inspection files:

• Written specification with chemical resistance rationale for the selected coating
• Surface preparation records per SSPC standards, with anchor profile measurements
• Application records: product lot numbers, batch quantities, mixing ratios, application temperature and humidity
• Film thickness measurements at specified intervals
• Holiday test report per NACE SP0188 with every holiday location, repair record, and retest confirmation
• Photographs documenting all stages of surface preparation and application

This documentation package is handed over at project completion and is structured for direct inclusion in your compliance records.

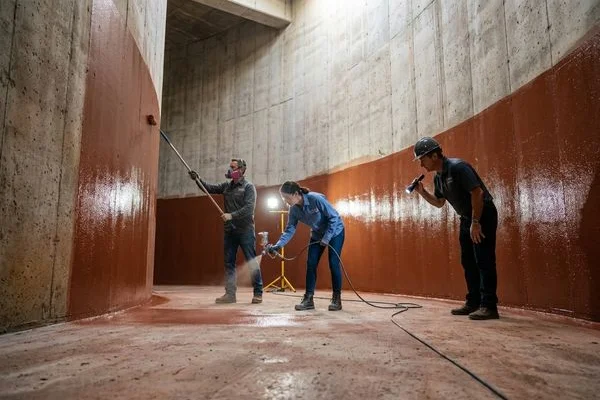

Tank Interior Coating as Immersion Service

Tank interior coating for chemical storage, potable water, wastewater, and fuel service is among the most demanding application work we do, and among the most consequential when it is done incorrectly. Interior coatings see full chemical immersion 24 hours a day, and any failure exposes the tank shell to direct chemical damage.

Surface preparation for immersion service requires abrasive blasting of steel to SSPC-SP 10 or SP 5, near-white or white metal, because any mill scale, rust, or contamination remaining under an immersion coating causes premature failure. For concrete tanks, surface preparation must achieve ICRI CSP 5 to 6 minimum to deliver the mechanical anchor profile these thick coatings need. David Lee leads every diamond-grinding crew on tank work because he treats the substrate as the single most important variable.

We apply immersion-service coatings in multiple coats with full cure and holiday testing between each coat, ensuring that the final system has complete coverage, correct total film thickness, and no pinholes that could admit the contained chemical to the substrate.

Call Epoxy Ninja Malaysia on 012-3751234 to discuss your chemical exposure profile and receive a technically defensible lining specification for your Klang Valley containment or tank project.
