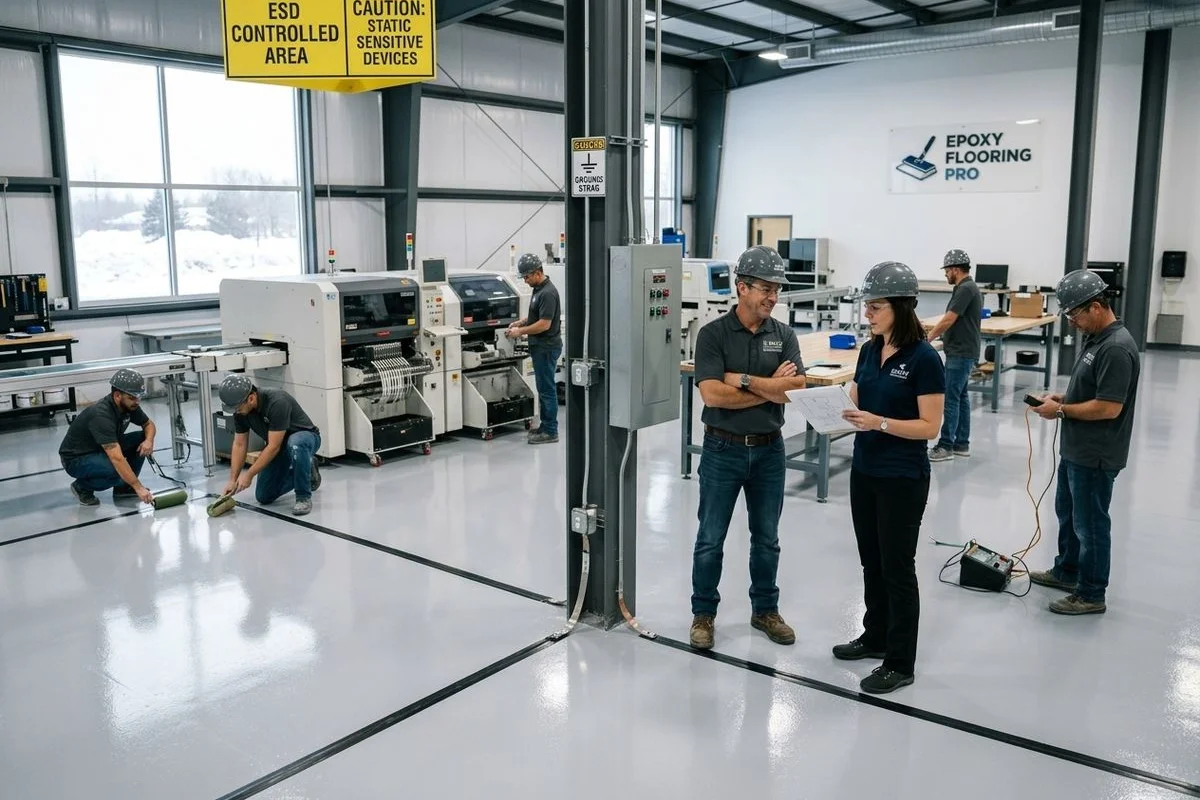

Why ESD Floor Failures Are Never Just a Flooring Problem

When an electrostatic discharge event damages a circuit board in a Shah Alam PCB assembly line, contaminates a pharmaceutical batch in a Petaling Jaya cleanroom, or triggers an ignition event in a solvent-handling bay, the flooring is rarely the first thing investigated. But in a high percentage of ESD-related incidents, the floor (or more precisely, the failure of the floor system to reliably dissipate static charge to ground) is a contributing factor that only becomes visible after the damage is already done.

Standard epoxy floors conduct static unpredictably. Without a properly installed grounding grid and a coating system with verified, stable resistance values, the floor may perform adequately on the day of installation and drift out of specification within eighteen months as the conductive additives degrade, the grounding connections loosen, or the topcoat accumulates surface contamination, a common root cause of failing floor coatings across KL’s electronics corridor.

Epoxy Ninja Malaysia designs, installs, and certifies ESD floor systems engineered to hold their resistance specification reliably, not just at installation, but across the operational lifespan of the system.

The Klang Valley ESD Landscape

Malaysia’s electronics sector is tightly integrated with Penang and Kulim wafer fabs, and a growing share of final assembly, test, and packaging takes place across the Klang Valley. Contract manufacturers serving multinational OEMs in Shah Alam, Subang, Seri Kembangan, and Cyberjaya face audit requirements that are effectively identical to those at the parent facility: ANSI/ESD S20.20 compliance is not optional, and the flooring is scrutinised on every site visit.

Our client base for ESD work spans:

• Contract electronics manufacturers for consumer and automotive semiconductors
• Medical device assembly plants across Shah Alam and Klang
• Pharmaceutical cleanroom operators around Petaling Jaya and Nilai
• Data centres in Cyberjaya, Bukit Jalil, and the northern KL corridor
• Aerospace and defence component assemblers around KLIA and Sepang

Each environment has a different resistance target, a different chemical exposure, and a different traffic profile. We specify each project from a blank sheet.

Understanding ESD Floor System Requirements

Resistance Classification

The first decision in any ESD floor specification is the required resistance range.

Conductive flooring (Rg < 1×10^6 Ω) is used in environments where rapid charge dissipation is critical: explosive atmosphere handling areas, certain semiconductor test processes, and environments where charge accumulation of any level is unacceptable.

Static dissipative flooring (Rg 1×10^6 to 1×10^9 Ω) provides controlled, slower dissipation that prevents damaging discharge events while avoiding the rapid discharge that could itself damage sensitive components. This range is appropriate for most electronics manufacturing, PCB assembly, and pharmaceutical environments.

The appropriate range is determined by your ESD control program, the sensitivity of your devices (ESDS classification), and the guidance of your ESD coordinator. We work from your specification, not from a default.

Why Grounding Grids Are Non-Negotiable

Many ESD floor failures trace directly to inadequate grounding rather than coating chemistry. An ESD coating without a properly designed and installed grounding grid is like a drain pipe without a sewer connection: the path to ground simply does not exist in a reliable, measurable way.

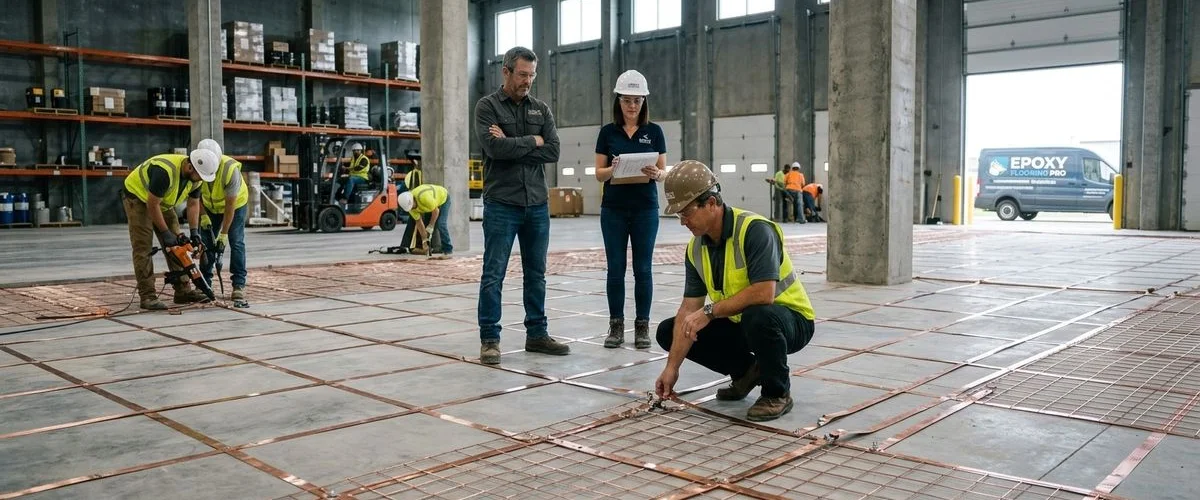

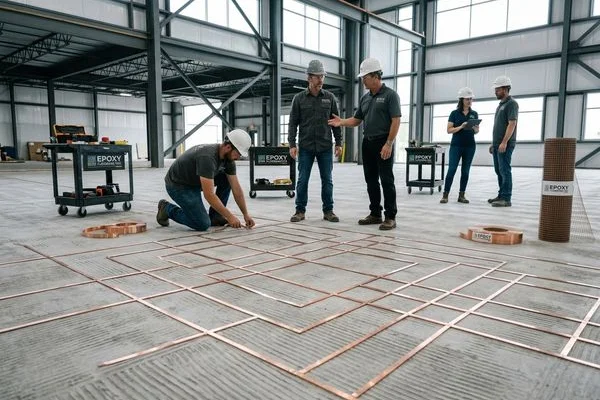

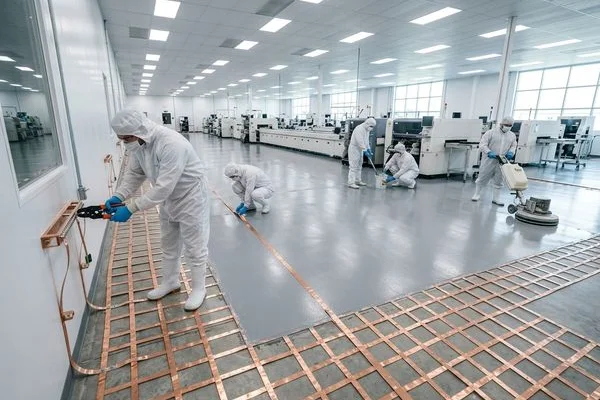

Our copper grounding grid installations use high-conductivity copper tape installed in a grid pattern beneath the coating system. The grid is tied into the facility electrical ground system, providing a true, measurable, reliable path to ground from every point on the floor surface. The resistance from any location on the floor to ground is tested and documented before project closeout.

The ESD Floor System Stack

Conductive Primer

The primer layer serves two functions: it fills the concrete surface profile and provides the initial conductive pathway connecting the topcoat to the grounding grid below. We use two-component epoxy conductive primers that cure to a stable, verified resistance range and provide the adhesion foundation for the system above.

ESD Intermediate Coat

For thicker systems or environments requiring chemical resistance, an ESD-rated intermediate coat builds film thickness while maintaining conductivity continuity throughout the stack. This layer is particularly important in environments with heavy chemical exposure or high mechanical abrasion.

Static-Dissipative Topcoat

The topcoat is the surface layer that takes the wear, the cleaning chemistry, and the physical contact from feet, carts, and equipment. Our static-dissipative topcoats are formulated to hold their resistance across the expected service life, resist the cleaning agents used in your facility, and provide the surface hardness needed for your traffic loads.

Certified Testing and Documentation

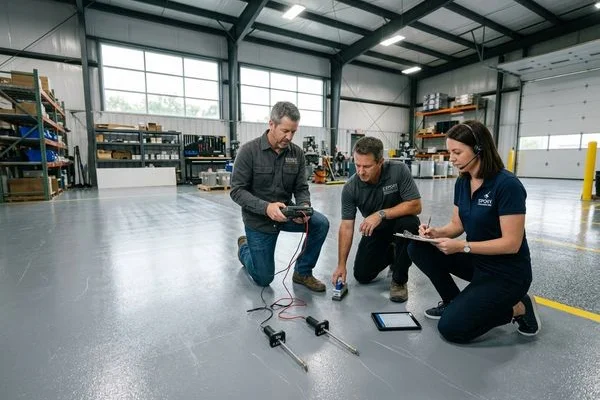

An ESD floor that cannot be verified is not a compliant ESD floor. Every installation we complete is tested per ANSI/ESD S7.1 using calibrated megohmmeter equipment. Testing is performed across a systematic grid pattern that covers the entire floor area, and all readings are documented in a formal test report that includes:

• Point-to-point resistance readings (Rp-p) at all test locations
• Resistance to groundable point readings (Rg) at all test locations
• Pass/fail determination against your specified resistance range
• Photographs of test setup and floor condition
• Project information, date, and tester credentials

This documentation integrates directly into your ANSI/ESD S20.20 ESD control program documentation set and is available immediately for customer audits.

Holding Specification Through the Monsoon: Our Humidity Discipline

One issue that catches out less experienced KL contractors is resistance drift caused by tropical humidity. Ambient RH above 80%, combined with moisture vapor pushing up through slabs on grade, can cause topcoat resistance to drift outside the specified range on standard-formulation ESD systems. Siti Nurhaliza coordinates our ESD project schedules specifically around monsoon forecasts, and we specify humidity-stable binder chemistry and vapor-barrier priming on every ground-floor KL installation. Our expectation is that the readings on test day will still be the readings at the next scheduled recertification.

Applications We Serve Across Kuala Lumpur

Our ESD flooring installations span the range of static-sensitive environments in the Klang Valley:

Electronics Contract Manufacturing: PCB assembly, SMT lines, conformal coating, and test areas where ESDS components are handled for multinational customers.

Semiconductor Test and Packaging: Wafer handling, die bonding, and packaging areas requiring the tightest resistance control.

Pharmaceutical Manufacturing: Cleanroom environments where static charge can cause powder agglomeration, contamination events, or attract particles in ISO-classified areas.

Aerospace and Defence: Avionic component assembly and test environments with strict documentation requirements.

Data Centres and Server Rooms: Equipment staging and installation areas where static discharge could damage rack-mounted hardware during commissioning.

Call Epoxy Ninja Malaysia on 012-3751234 to schedule a static control flooring assessment. We will specify the right system, install it correctly with a certified grounding grid, and deliver the documentation your ESD program and your customers require.
