Failing Floor Coating Remediation in Kuala Lumpur

When a New Floor Fails Within Weeks, Something Went Very Wrong

A properly specified and installed epoxy floor coating should last years, often decades, before requiring any remediation. When an epoxy floor starts peeling within months, blistering within weeks, or delaminating in sheets within days of application, it is not bad luck. It is a preventable failure caused by a specific, identifiable mistake in specification, surface preparation, or application, usually compounded by a contractor who treated Kuala Lumpur’s tropical climate as an afterthought.

Epoxy Ninja Malaysia specialises in turning those failures around. Our founder Michael Tan spent thirteen years watching the same failure modes repeat across Klang Valley warehouses and plants: moisture vapor ignored, substrate preparation shortcut, wrong resin chemistry specified, or application pushed into a monsoon afternoon with a rising dew point. Every time, the root cause was diagnosable and preventable. We approach every failing floor the same way: investigation first, remediation second, and documentation throughout.

The KL Failure Pattern You Should Be Watching For

Over hundreds of failure investigations across Kuala Lumpur, Shah Alam, Subang Jaya, Puchong, and Klang, one pattern dominates: tropical moisture vapor defeating a specification that was copied from a temperate-climate manual. If your floor is showing blisters that bubble up in the first post-monsoon humid season, the problem is almost never the epoxy brand. It is the mismatch between the specification and the actual slab your facility sits on.

We also see recurring issues around shortcut surface preparation (acid etching in place of shot blasting), mixing products across manufacturers because one brand ran short mid-job, and applying recoats after the specified recoat window has closed by days or weeks.

The Four Most Common Causes of Floor Coating Failure in Klang Valley

Understanding why floors fail is the prerequisite to fixing them correctly. Across our investigations, four failure modes account for the majority of premature failures.

1. Inadequate Surface Preparation

Surface preparation is the foundation of every coating installation. Inadequate preparation, whether from using the wrong method, insufficient equipment, or skipping steps to save time, produces a concrete surface that cannot sustain the adhesion values required for long-term performance.

The most common preparation failures include:

Insufficient surface profile (CSP): Every coating manufacturer specifies a required concrete surface profile. Shot blasting achieves CSP 3 to 5. Diamond grinding achieves CSP 2 to 3. Simple acid etching achieves at best CSP 1 to 2. Using acid etching for a system that requires shot blasting produces adhesion values far below specification, and eventual delamination is the result.

Surface contamination: Oil, grease, curing compounds, sealers, and even microscopic concrete dust can prevent proper adhesion. Floors with chemical damage require particularly thorough decontamination. Contaminated surfaces can look clean and test as clean visually but fail chemically as soon as load is applied.

Inadequate crack repair: Cracks that are surface-filled rather than properly routed and sealed transmit movement to the coating layer, creating stress concentrations that initiate delamination at the boundary.

2. Tropical Moisture Vapor Emission

Moisture vapor is the single most common cause of coating delamination in KL, and the most frequently missed problem in pre-installation inspection. Concrete is not a moisture barrier. It transmits water vapor from the ground below and from within the slab itself, driven by concentration gradients, temperature differences, and hydrostatic pressure. Slabs on grade across Cheras, Kajang, Sungai Besi, and the Federal Highway corridor sit over saturated subsoils that push vapor upward twenty-four hours a day, with monsoon rains from November to February driving the rate higher still.

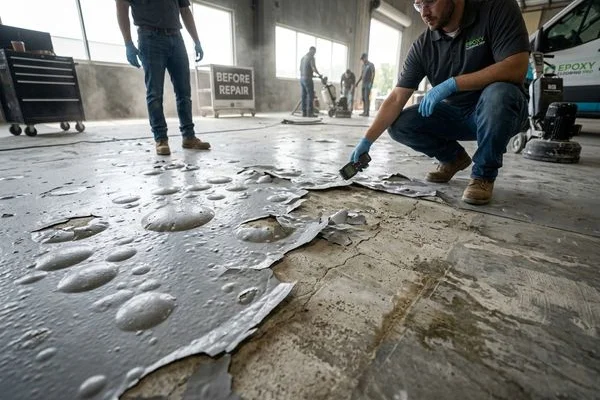

When moisture vapor pressure at the concrete surface exceeds the adhesive strength of the coating bond, the coating delaminates, typically beginning as small circular blisters (often appearing within weeks of installation) that expand, connect, and eventually produce sheets of peeling film.

ASTM F1869 (calcium chloride test) and ASTM F2170 (in-situ relative humidity probe) are the standard test methods for measuring moisture vapor emission rate. Both have manufacturer-specified threshold limits that must not be exceeded before coating application. We test for both on every project.

3. Application Outside Product Parameters

Two-component epoxy systems have defined working conditions: minimum and maximum application temperature, maximum relative humidity, minimum dew point differential, and open time limits. Application outside these parameters, especially in the 32°C+ afternoons common to KL production schedules or during high-humidity monsoon windows, produces partially cured, under-crosslinked coating layers with adhesion values far below specification.

The failure often appears weeks later as the coating continues to slowly cure in place, changing dimension and stressing adhesion bonds that were already marginal at application.

4. Product Incompatibility and Recoat Window Violations

Coating systems are formulated as stacks (primer, intermediate coat, topcoat) where each layer is chemically compatible with the layer above and below. Mixing products from different manufacturers, applying a recoat after the specified recoat window has closed, or applying a new system over an existing coating that was not properly prepared creates adhesion failures that are often invisible at application but appear within weeks as the system ages.

Our Remediation Process: Fix the Problem, Not the Symptom

Step One: Investigation Before Action

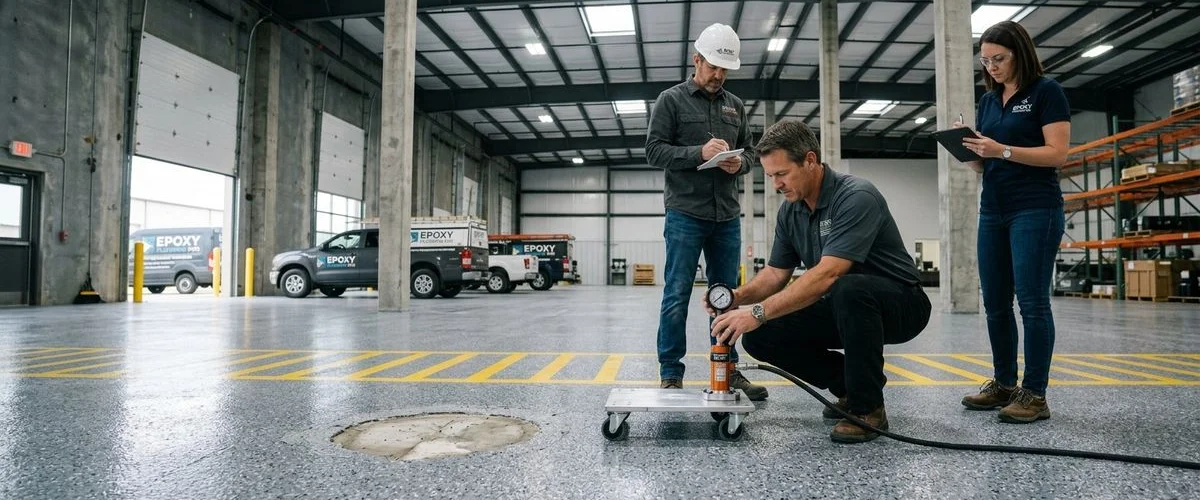

We do not arrive at a failed floor and immediately begin applying materials. Investigation comes first. Our assessment includes adhesion pull testing to measure what bond strength remains, ASTM F1869 and ASTM F2170 moisture vapor tests, pH testing, and a full review of available installation records.

The investigation findings are documented in a written failure report that identifies the specific failure mode, the evidence supporting that conclusion, and the recommended remediation approach. The report is yours regardless of whether you engage us to perform the fix.

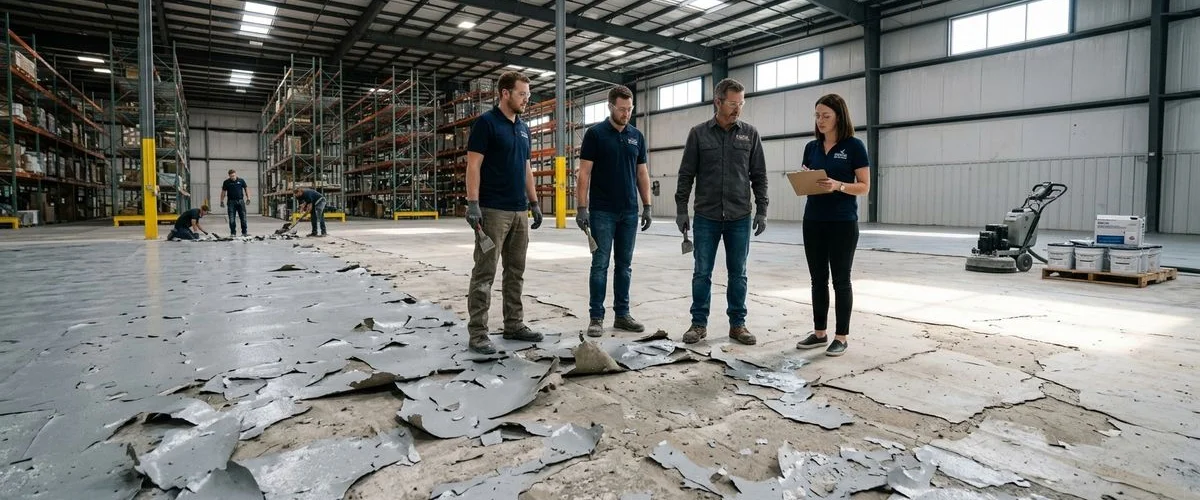

Step Two: Complete Removal of Failed Material

Every square metre of failed coating material is removed before any new material is applied. Shot blasting removes coating down to bare concrete in a single pass on most applications. Diamond grinding under David Lee’s supervision removes stubborn adhesive residues and corrects surface profile. The concrete surface is then inspected, tested, and cleared before remediation begins.

Step Three: Substrate Correction

Correcting the concrete substrate is often the most important part of remediation. If moisture vapor was the failure mode, a moisture vapor mitigation system is installed before the new coating. If CSP was inadequate, shot blasting corrects the profile. If contamination was present, chemical cleaning and testing confirm its removal to a measurable standard.

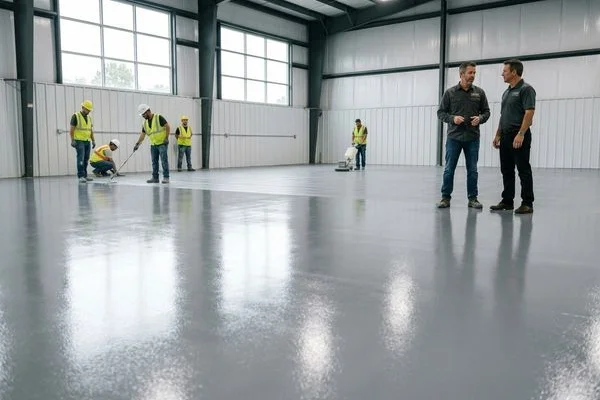

Step Four: Warranted Replacement System

The replacement system is specified for the corrected substrate and for actual KL tropical conditions, not the same specification that failed the first time. Every replacement installation we perform is documented and warranted, because we correct the underlying problem before we ever apply new material.

If your floor coating failed prematurely, regardless of who installed it, call Epoxy Ninja Malaysia on 012-3751234. We will tell you exactly what went wrong and fix it correctly.
