HACCP-Certified Food-Grade Floor Systems in Kuala Lumpur
HACCP-certified, FDA-acceptable floor systems engineered for food processing, beverage production, and pharmaceutical manufacturing across Kuala Lumpur and the Klang Valley.
The Floor Is a Critical Control Point in Your HACCP Plan
In food and beverage manufacturing, every surface that contacts or sits adjacent to food production must be considered a potential source of contamination. Your floor is one of the highest-risk surfaces in the facility, constantly exposed to raw materials, processing byproducts, sanitising chemicals, forklift traffic, and the cyclic wet-dry conditions that promote microbial growth in a tropical environment.
HACCP (Hazard Analysis Critical Control Points) frameworks require facility surfaces to be smooth, cleanable, non-porous, and free of harboring areas where bacteria, mould, and other microorganisms can colonise. A cracked, spalled, or improperly sealed floor fails these requirements and creates audit findings that threaten your HACCP certification, your JAKIM Halal status, your customer relationships, and ultimately your ability to operate.
Epoxy Ninja Malaysia has specialised in food and beverage floor systems since 2017. Our crews work in JAKIM Halal-certified poultry facilities, dairy plants, beverage and packaged food lines, pharmaceutical production areas, commercial bakeries, and institutional kitchens across Shah Alam, Petaling Jaya, Subang Jaya, Klang, and the wider Klang Valley. We understand the regulatory landscape, the performance requirements, and the installation discipline that food-safe flooring demands in a tropical climate.
The Malaysian Regulatory Framework
JAKIM Halal Certification Requirements
For Halal-certified facilities, the cleanliness, material, and segregation requirements of the JAKIM Halal Assurance System extend to the floor surface. Non-porous, fully sealed floors with coved skirting are a practical expectation of most Halal auditors we encounter, because porous or cracked floors create contamination risks the Halal framework explicitly addresses. We specify systems and coving details that stand up to JAKIM audit without special preparation.
HACCP, SQF, BRC, and FSSC 22000
Many Klang Valley food manufacturers operate under HACCP, SQF, BRC, or FSSC 22000 standards, each of which includes facility and infrastructure requirements for floors. We are familiar with the floor-related clauses of these standards and specify systems that satisfy the documentation and performance requirements auditors evaluate. We review the specific clauses applicable to your certification standard before specifying.
FDA-Acceptable Formulations for Export-Oriented Plants
For facilities exporting to the US or supplying US multinational brands, we specify formulations compliant with the relevant FDA 21 CFR sections for incidental food contact. Full regulatory documentation from the coating manufacturer is provided for your records.
System Selection by Zone: Not One Floor for the Whole Facility
The most common mistake in food facility floor specification is applying a single system throughout the entire plant. A single Klang Valley processing plant may need three or four distinct floor systems based on zone conditions.

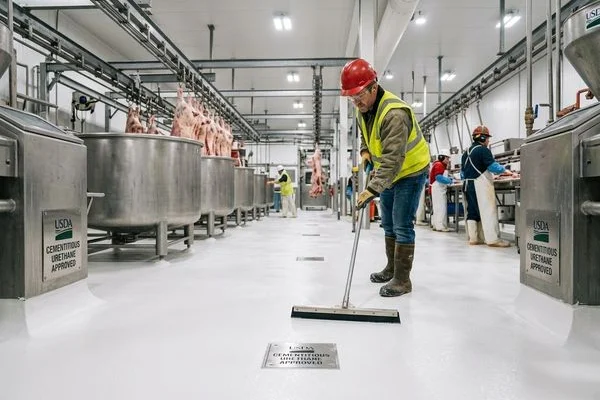

Wet Processing Zones (Primary Production)
Recommended system: Urethane cement, 6 to 9 mm thick with broadcast aggregate for slip resistance
These areas see the most demanding conditions: daily high-pressure hot water (60 to 85°C) or steam cleaning, significant thermal cycling between cold process and hot sanitation temperatures, continuous wet conditions, and exposure to organic acids, fats, blood, and sanitisers. Only urethane cement delivers the thermal shock and organic acid resistance these conditions demand.

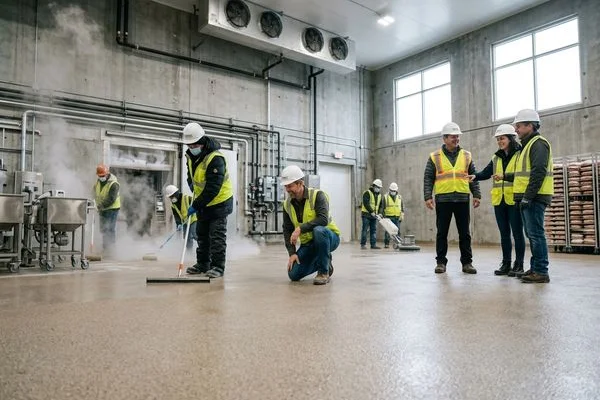

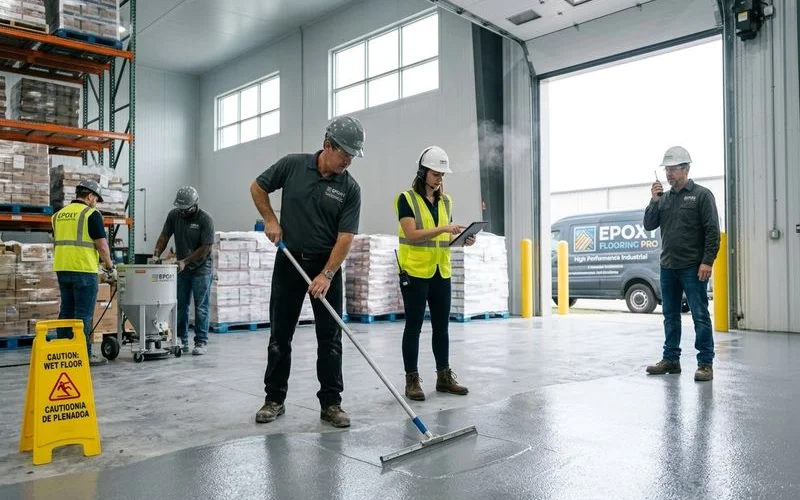

Refrigerated and Chilled Areas
Recommended system: Moisture-tolerant urethane cement or low-temperature epoxy mortar
Refrigerated areas present dual challenges: very low temperatures during operation and significant condensation during defrost or warm-up cycles, which is intensified by KL ambient humidity. Standard epoxy systems often fail in refrigerated environments due to differential thermal expansion between the concrete slab and the coating. We specify systems validated for the temperature ranges in your cold chain areas.

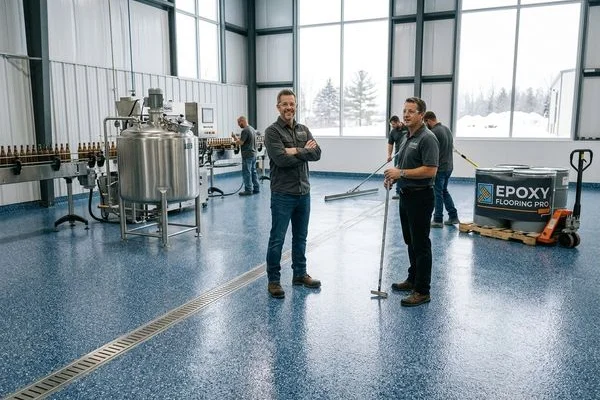

Dry Production and Packaging Areas
Recommended system: 100% solids epoxy with aliphatic topcoat, or polished concrete with guard
Where thermal shock and organic acids are not present, 100% solids epoxy systems provide excellent durability and chemical resistance at lower cost than urethane cement. These areas benefit from smooth, seamless surfaces that are easy to sweep and mop, bright reflective colours that improve light levels and cleanliness perception, and optional colour coding for zone demarcation and 5S compliance.
Loading Docks and Receiving Areas
Recommended system: Heavy-duty epoxy mortar or urethane cement with anti-slip aggregate
Receiving and dispatch areas experience extreme point loading from pallet jacks, forklifts, and lorry dock levellers. They also experience significant temperature variation and moisture from outdoor exposure. These areas require impact-resistant mortar systems with adequate thickness to resist the point loading of steel-wheeled equipment.

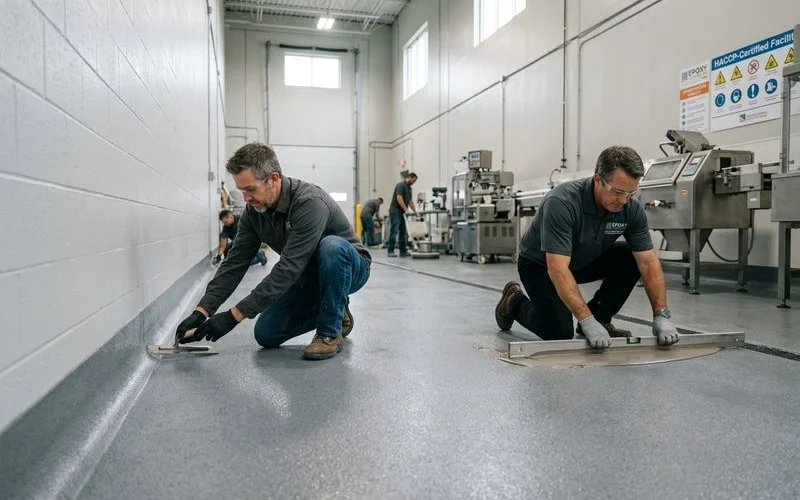

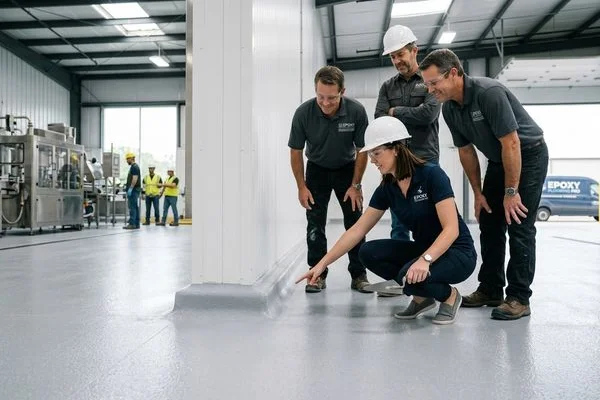

The Coved Skirting Detail: Where Most Food Facility Floors Fail
The transition between the floor and the wall is the highest-risk location for harbourage creation in food facilities. A conventional square-profile junction between floor and wall creates an inaccessible ledge where cleaning tools cannot reach, organic material accumulates, and microorganisms colonise rapidly in KL humidity.
The solution is coved skirting: a radiused fillet transition that slopes the floor surface continuously up the wall face, typically to a height of 100 to 150 mm, using the same material as the primary floor system. The 50 mm radius allows cleaning tools to reach and clean the entire transition without leaving a dead zone.
Coved skirting must be applied at:
- All exterior walls throughout food processing zones
- All structural columns within processing zones
- All equipment bases and plinths that cannot be moved
- Floor transitions to floor drains and drain channels
Our crews use factory-formed cove tools to ensure consistent radius and height throughout the installation. We have seen many KL food facility floors fail at coved skirting transitions because the cove was applied by hand without proper tooling, producing inconsistent radius, improper bond to the wall, or gaps at the top edge that let water and organic material penetrate.
Slip Resistance in Wet Processing Environments
Food processing environments with wet floors, organic material, and workers in rubber boots present a serious slip-and-fall risk. DOSH-aligned walkway safety requires that walking surfaces be kept clean and free of slip hazards; HACCP protocols require that floor surfaces be cleanable. These requirements are not in conflict, but they must both be satisfied simultaneously.
We achieve the correct balance through:

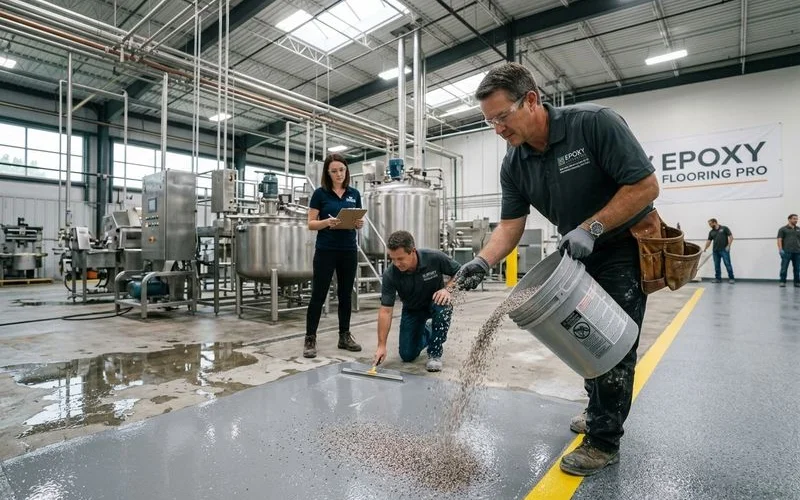

Broadcast aggregate systems: Aluminium oxide or silicon carbide aggregate broadcast into the wet floor coating provides texture for slip resistance while maintaining a closed surface that is cleanable and non-harboring. Aggregate profile, coverage rate, and topcoat application sequence determine both the slip-resistance level and the cleanability of the finished surface.
Anti-slip topcoats: Some applications, drain channel side walls, ramps, and specific high-risk zones, receive anti-slip topcoat formulations with measured coefficients of friction (COF). We target COF values per ANSI A137.1 recommendations for the specific application.
Sanitation Compatibility: Chemical Resistance That Matters
The sanitising chemicals used in food facilities (quaternary ammonium compounds, peroxyacetic acid, sodium hypochlorite, caustic soda, and phosphoric acid) are highly aggressive. Coating systems specified for food facilities must demonstrate specific resistance to these substances at the concentrations and temperatures used in your sanitation protocol.
We obtain and review chemical resistance data from coating manufacturers for your specific sanitation chemicals before specifying. We have encountered coating systems marketed as “food safe” that are not resistant to the sanitiser concentrations used in a client’s CIP process, a problem that causes rapid coating degradation and potential food safety concerns as coating material enters the product stream.
For facilities where chemical resistance is particularly demanding (high-concentration acid or caustic CIP systems, for example), we specify novolac epoxy or vinyl ester topcoats that offer significantly higher chemical resistance than standard epoxy chemistry.
Call Epoxy Ninja Malaysia on 012-3751234 to schedule a zone-by-zone assessment of your Klang Valley food facility and receive a HACCP-aligned floor specification with full regulatory documentation ready for your next audit.
What's Included
Our Food & Beverage Flooring Installation Process
Facility Assessment and Compliance Review
We conduct a detailed facility assessment covering zone classification (wet/dry, processing/non-processing), drain locations and flow patterns, temperature exposure including steam CIP cycles, chemical exposure profile, and existing floor condition. Michael Tan reviews HACCP and JAKIM Halal documentation requirements with your QA team before specification.
Zone-Specific System Specification
Food facilities rarely have uniform conditions throughout. Wet processing areas, refrigerated zones, dry storage, receiving docks, and employee welfare areas each require different system properties. We develop a zone-by-zone specification: urethane cement in steam-cleaned wet zones, 100% solids epoxy in dry production areas, anti-slip broadcast systems in high-traffic pedestrian zones.
HACCP-Protocol Surface Preparation
All surface preparation in food production facilities follows HACCP-aligned protocols. Equipment is cleaned between zones to prevent cross-contamination. Shot blasting is fully containerised and tied into HEPA-filtered vacuums. All chemical prep materials are food-safe rated. Substrate moisture and pH are documented. The preparation area is kept isolated from active food production throughout the project.
Drain and Cove Installation
Drains are properly integrated into the floor system with sloped transitions that direct water without pooling. Coved skirting at all wall, column, and equipment base junctions is installed using the same floor system material, creating a fully seamless, cleanable transition that eliminates the harboring areas that grow microorganisms in conventional square-profile junctions.
Primary System Application
The primary floor system is applied following manufacturer protocols for temperature, humidity, and pot life. Food-grade pigments and antimicrobial additives are blended at factory-verified concentrations. Film thickness is monitored at each stage and documented. All application equipment is kept clean and free of contaminants throughout the installation.
Compliance Documentation and Inspection
On completion we provide a full compliance package: product data sheets confirming FDA-acceptable status, application records with lot numbers and batch quantities, photographic documentation of all stages, moisture testing records, and inspection confirmation. This documentation supports HACCP audit records, JAKIM Halal inspections, and SQF or BRC certification files.
Why Choose Epoxy Ninja Malaysia
Food Safety Protocol Training
Our crews who work in food and pharmaceutical facilities complete food safety awareness training before entering any food-contact area. Foreman Amirul bin Rahmat and coordinator Siti Nurhaliza understand HACCP principles, GMP requirements, and how installation activities must be managed to avoid contaminating active food production environments.
Approved Product Inventory
We maintain an inventory of FDA-acceptable coating systems from Sika Malaysia and Nippon Paint Protective Coatings, ensuring product availability and the ability to match the right system to your specific facility requirements rather than whatever single product one manufacturer happens to be pushing.
Cove and Drain Expertise
Coved skirting and drain integration are the highest-failure-risk details in food facility flooring. Our crews are specifically trained and practised in these details. We use correct cove tools, maintain consistent radius and height, and fully integrate the cove into the floor system to deliver a truly seamless, monolithic surface.
Thermal Shock Testing
We only specify systems with documented thermal shock resistance tested to the actual temperature ranges in your facility. Many epoxies claim chemical resistance but are not rated for the 10 to 90°C thermal cycling common in Malaysian food processing. We verify performance data before specifying.
Experience Across Malaysian Food Sectors
We have installed food-grade floor systems in poultry processing, dairy production, beverage manufacturing, commercial bakeries, confectionery, pharmaceutical production, and institutional kitchens across the Klang Valley. This cross-sector experience means we understand the specific demands of your operation before the project begins.
Project Gallery
Before & After

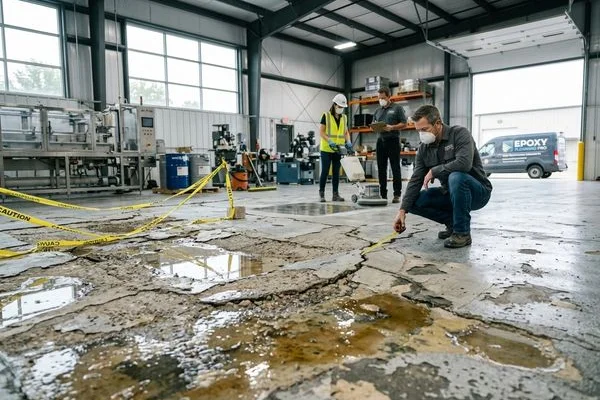

Before

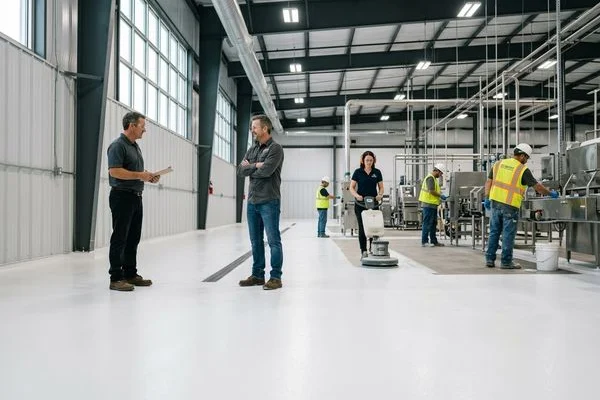

After
What Our Clients Say
"Our JAKIM Halal-certified poultry processing plant had two failed floor installations before we called Epoxy Ninja Malaysia. Their team understood our compliance requirements immediately, specified the correct urethane cement system with proper coved skirting, and completed the installation during our scheduled plant shutdown. We passed our follow-up Halal audit with zero floor-related findings. Finally, a contractor who understands food facilities."
"The coved skirting detail is everything in a food facility. If it is done wrong, you have a bacteria harbourage point that auditors will flag immediately. The crew was meticulous about every cove transition. Our SQF auditor specifically commented on the quality of the floor installation during our last audit. Worth every ringgit."
"We needed a floor system that could handle daily high-pressure steam cleaning, forklift traffic, and incidental contact with dairy products. The thermal shock-resistant urethane cement system they specified has held up for 20 months of continuous production. The non-porous surface cleans in minutes. Genuinely impressive product knowledge from their team."
Frequently Asked Questions
What does FDA-acceptable mean for a floor coating, and do I need it in a Malaysian facility?
Why is urethane cement preferred over epoxy in wet food processing areas?
Can the floor be installed while the facility is in partial operation?

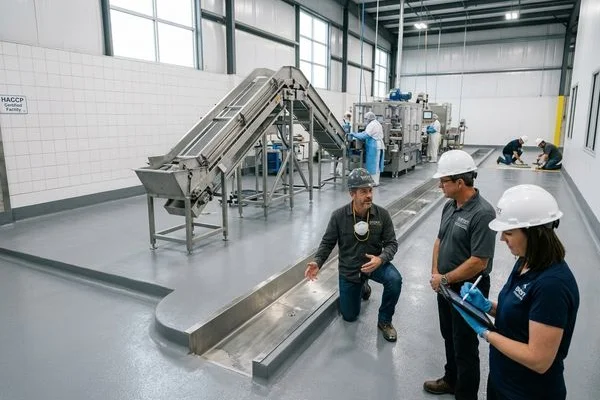

How do you handle floor-to-drain transitions without creating bacteria harbouring points?
Does KL's tropical climate create special challenges for food-grade flooring?
What antimicrobial options are available?
