DOSH-Aligned OSHA-Style Floor Striping & 5S Markings in Kuala Lumpur

Floor Markings Are a Safety Requirement, Not a Decoration

Forklift and pedestrian incidents remain one of the most consistent causes of serious workplace injury across Malaysian manufacturing and logistics. Inadequate traffic separation, particularly the lack of a clearly marked pedestrian corridor, is a root cause DOSH inspectors return to again and again. The Occupational Safety and Health Act 1994 (Malaysia) places responsibility on employers to keep walking and working surfaces safe, and floor markings are a primary tool for meeting that duty.

Beyond the regulatory minimum, a well-designed marking system is a practical safety management tool. It communicates expected behaviour, defines traffic flow, and creates a visual order that reduces the cognitive load on workers navigating a busy facility. When everyone knows exactly where pedestrians walk and where forklifts travel, the incident rate falls. We have seen that play out on every Klang Valley warehouse we have striped.

Epoxy Ninja Malaysia installs DOSH-aligned floor marking systems using high-build epoxy and fast-cure polyurea that outlast standard traffic paint by a factor of five or more. We work with your safety team to develop a layout that satisfies regulatory expectations, aligns with your operational logic, and can be maintained without an annual repainting cycle.

The Klang Valley Striping Context

Specifications imported straight from temperate-climate manuals do not always survive the Malaysian industrial environment. Three local factors shape how we approach every project:

Tropical humidity: Ambient relative humidity above 80% year-round means traffic paint chalks and softens faster than its temperate-climate service life suggests. High-build epoxy and polyurea are chemically crosslinked and hold their mechanical properties through the monsoon seasons.

High-density forklift traffic: Klang Valley distribution hubs in Shah Alam, Port Klang, Puchong, and Bukit Raja run three-shift reach-truck and forklift operations. Point loads and turning scrub on painted lines are relentless. Film thickness is everything.

Multinational audit culture: Tier 1 customers in electronics, automotive, and consumer goods audit their Malaysian contract manufacturers against the same ANSI Z535 colour conventions they use worldwide. Alignment with that standard is not optional if you want to keep the contract.

Why Traffic Paint Fails and Epoxy Markings Do Not

The fundamental problem with standard floor traffic paint in industrial environments is film thickness. Standard traffic paint is applied at 50 to 100 microns dry film. A forklift tire, loaded to several tonnes, applies enormous point pressure to whatever surface it rolls over. At that film thickness, traffic paint has essentially no resistance to abrasion, and it simply wears away, peeling and failing within weeks in high-traffic intersections.

The Thickness Advantage

Our high-build epoxy marking systems are applied at 500 to 750 microns dry film after thorough surface preparation and primer application. This is not a thicker version of the same material, it is a fundamentally different product category. High-build epoxy:

• Bonds chemically to prepared concrete
• Cures to a hard, crosslinked polymer matrix
• Resists abrasion from steel and polyurethane forklift tyres
• Holds its edge definition through years of traffic
• Does not crack or delaminate under thermal cycling in unconditioned warehouses

For extreme traffic conditions, we use polyurea marking materials that deliver even higher hardness and impact resistance, with the added advantage of rapid cure (traffic-ready in one to two hours) that minimises disruption during installation.

Surface Preparation Matters for Stripes Too

One of the most common reasons floor markings fail prematurely, even good-quality epoxy products, is inadequate surface preparation. Grinding the stripe path to clean, profiled concrete is as essential for markings as it is for full epoxy coating systems. We grind all stripe paths to remove existing paint, contamination, and surface laitance before applying any marking material. The extra cost of proper preparation is recovered many times over in marking longevity.

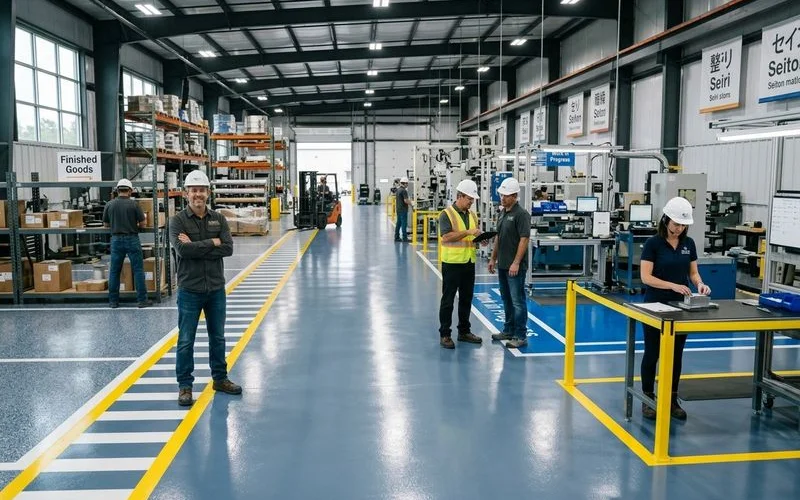

5S Floor Marking Systems for Lean Manufacturing

5S programs require every piece of equipment, every storage location, and every workflow path to have a defined, marked, and consistently maintained home position. Floor markings are the physical implementation of the Set in Order principle: making correct organisation the default by making it visually obvious.

5S Marking Elements We Install

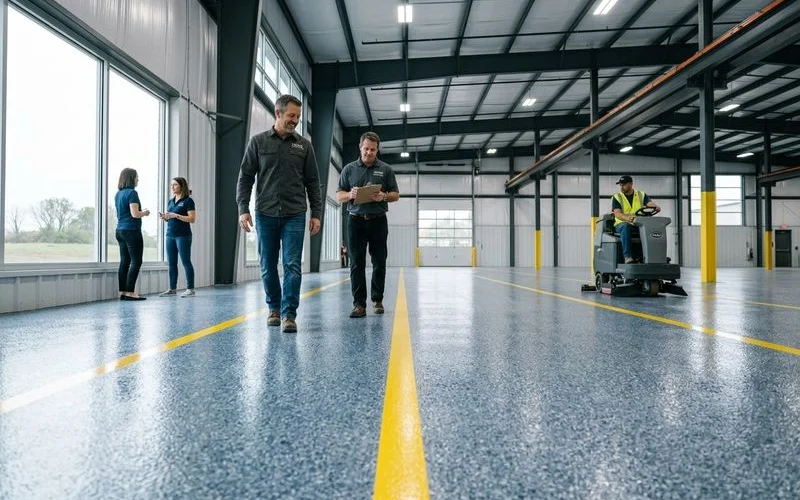

Aisle and Pedestrian Lanes: Yellow high-build epoxy lanes at widths matched to your reach-truck footprint and pedestrian traffic volume, typically 1.2 to 1.8 metres for main forklift aisles and 600 to 900 mm for pedestrian-only corridors.

Workstation Boundaries: White outlines defining the footprint of each workstation, machine, or assembly area. These communicate clearly where equipment belongs and make it immediately visible when items have drifted out of position.

Material Staging Areas: Outlines and labels for WIP buffers, incoming material staging, finished goods, and first-in-first-out lanes. Colour coding distinguishes zone types at a glance.

Equipment Home Positions: Precise outlines for carts, mobile equipment, pallet jacks, and anything that needs to return to a specific location. Often includes a text label stencilled into the marking.

Shadow Board Locations: Floor outlines marking where shadow boards (tool organisation boards) are positioned, so they are replaced if temporarily moved during a shift.

Waste and Recycling Zones: Clearly marked areas for recycling bins, waste containers, and scrap collection, colour-coded by waste stream.

Working From Your 5S Documentation

If your organisation has already developed 5S layout drawings, we work directly from those documents so the floor implementation matches your plan exactly. If you are initiating a program and do not yet have layout documentation, we facilitate a planning session with your operations team before installation begins.

Non-Slip Coatings for Pedestrian Safety Zones

Slip and fall incidents are among the most common workplace injuries, and slippery industrial floors, particularly in areas adjacent to material handling zones, are inherently high-risk. In areas where floors become wet, where lubricants may be present, or where worker safety demands higher assured traction, we install non-slip coatings as part of the marking system.

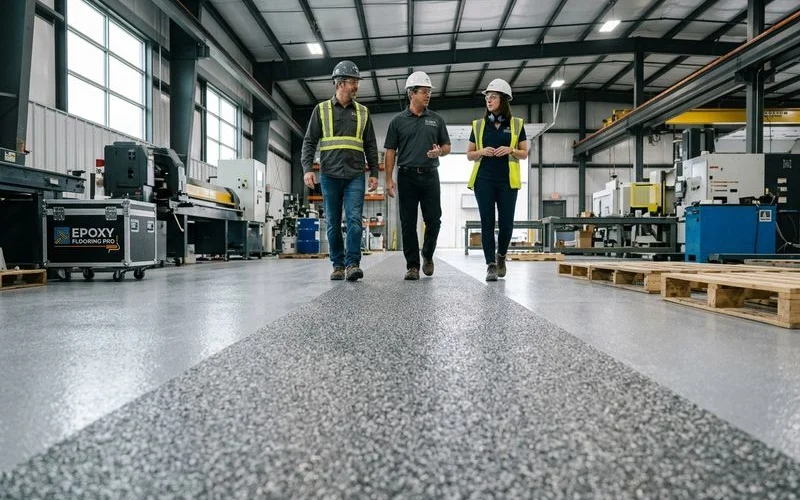

Our non-slip systems use aluminium oxide or silicon carbide aggregate broadcast into the wet marking material. The aggregate particle size and coverage rate determine the measured coefficient of friction. We target values appropriate to the specific application:

• General pedestrian areas: DCOF at or above 0.42
• Wet process areas: DCOF at or above 0.60
• Ramps and inclines: DCOF at or above 0.80

Aggregate-bearing marking systems maintain their slip resistance as long as the particles remain embedded in the matrix, typically years rather than months.

Colour Standards and ANSI Z535 Alignment

While DOSH does not mandate a specific Malaysian colour standard for industrial floor markings, ANSI Z535 provides the industry-recognised framework that most Klang Valley multinational auditors use. Alignment ensures your markings communicate consistently with industry expectations and with workers who may transfer from other facilities:

We design your complete marking system to this standard and include a colour legend in the handover documentation for incorporation into your safety program materials and new-employee orientation.

Call Epoxy Ninja Malaysia on 012-3751234 to schedule a facility walk-through and develop a DOSH-aligned marking layout for your Kuala Lumpur or Klang Valley operation.
